STANDARD CNC MACHINES
VERTICAL TURNING MILL

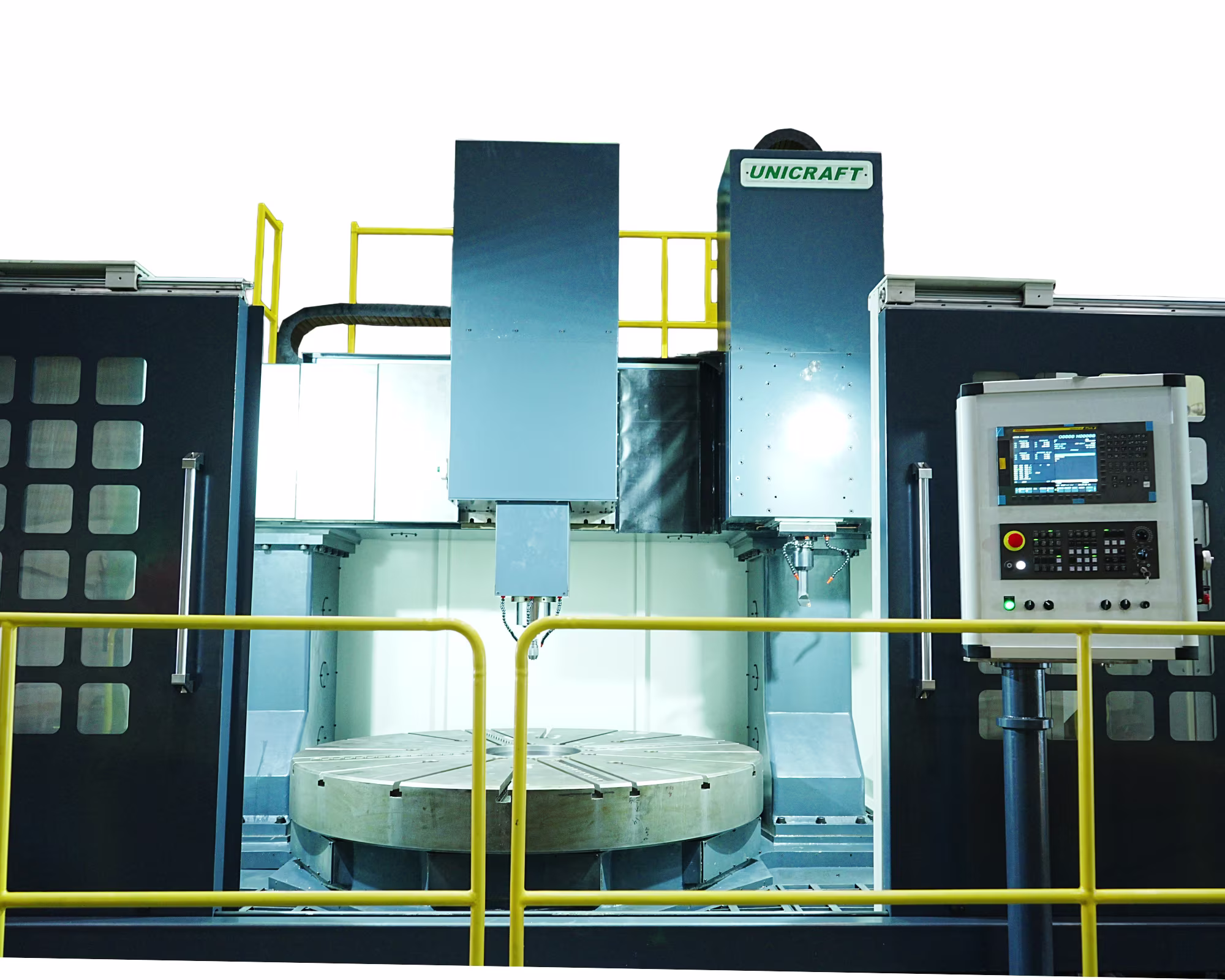

Vertical Turning Mill with Continuous C Axis
HIGH CAPACITY AND HIGH ACCURACY
Built to handle complex machining processes like turning, milling, drilling, and tapping in a single setting, with the capacity to accommodate large components.
Key Features
ATC Tool Magazine
Continuous Rotary Table
Product Specifications
| TRAVEL | ||
| X1 - Axis | 1250...1650 | mm |
| X2 - Axis | 1250...1650 | mm |
| Z1 - Axis | 500 | mm |
| Z2 - Axis | 500 | mm |
| ROTARY TABLE (CONTINUOUS) | ||
| Table Diameter | 2000...3000 | mm |
| Max Turning Diameter | 2400...3400 | mm |
| Power | 40 | kW |
| Speed Range | 120 | RPM |
| MILLING HEAD | ||
| Spindle Power | 9/11 | kW |
| Spindle Speed | 5000 | RPM |
| Spindle Taper | HSK100T/HSK63 | - |
| C AXIS CONTINUOUS | ||
| Minimum Index Angle | 0.001° | deg |
| CONTROL | ||
| Control | Siemens / Fanuc / Fagor | - |
Custom Requirements?
If your requirements differ from the listed specifications, feel free to reach out. We're happy to assess the feasibility of a customized solution.
