STANDARD CNC MACHINES
MOVING COLUMN MACHINING CENTER
Multifunction Centers for Advanced Milling and Turning
HIGH CAPACITY AND FLEXIBILITY

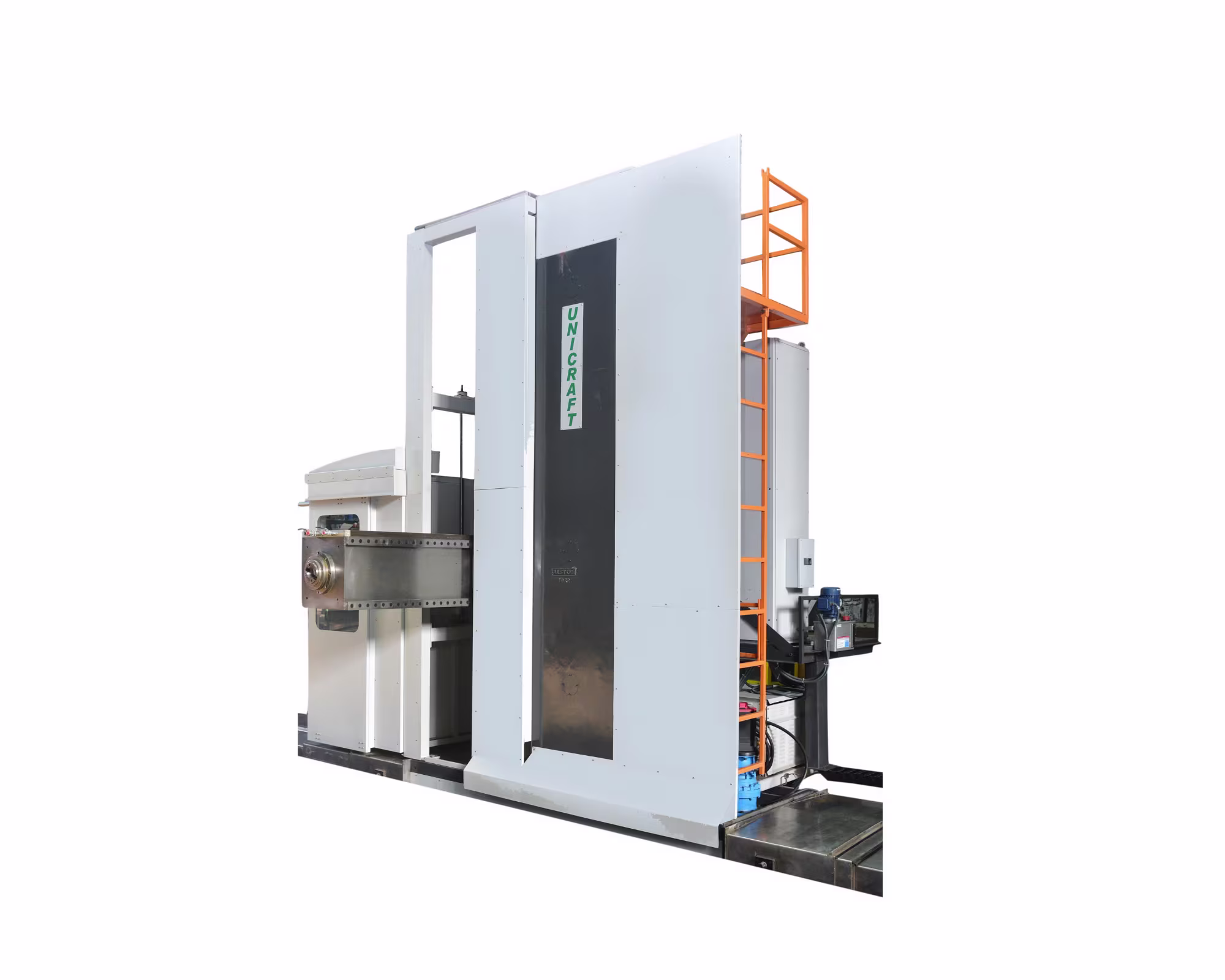

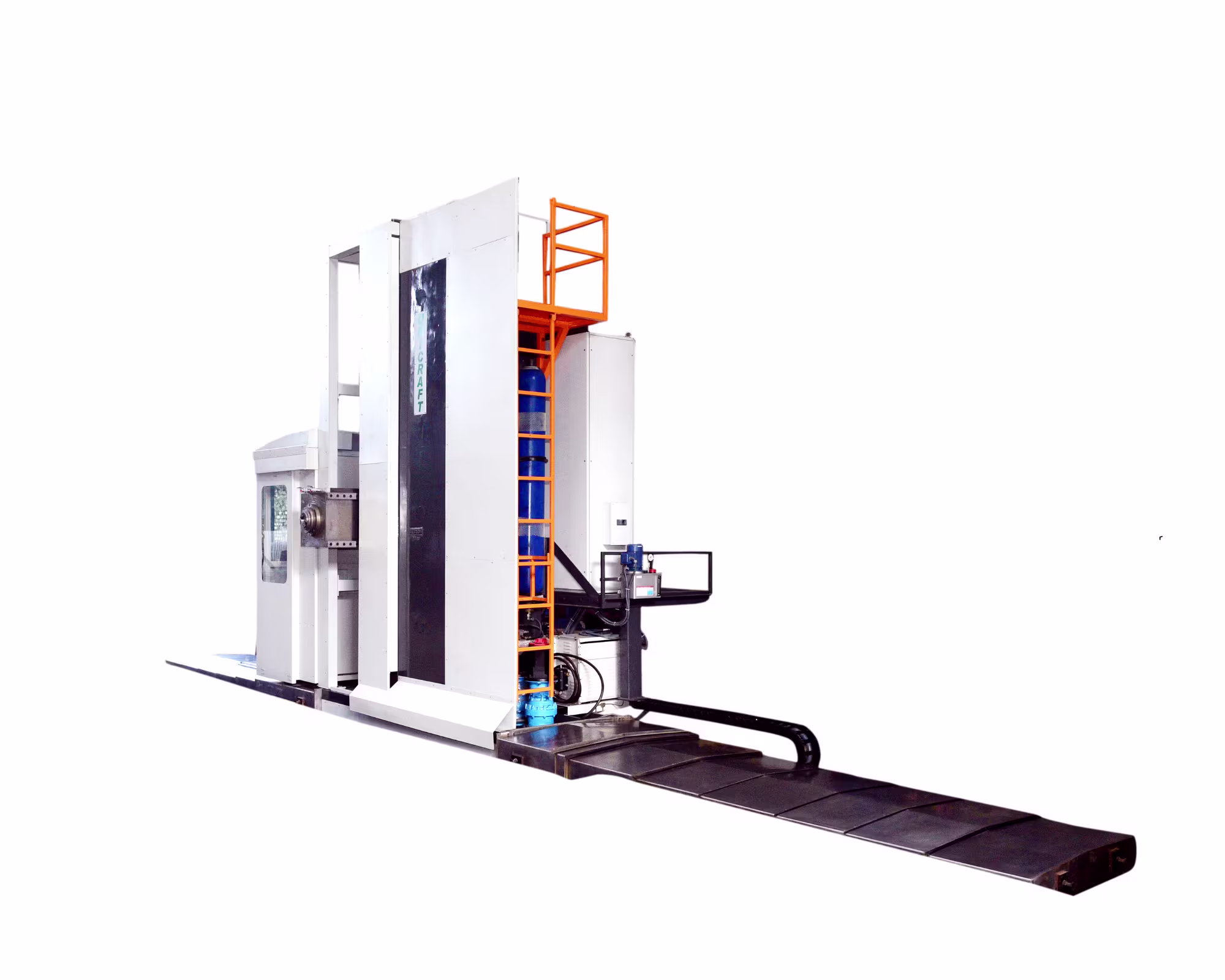

A traveling column mill with robust design, this machine is ideal for bulky, heavy-duty jobs requiring high-precision accuracy.
Key Features

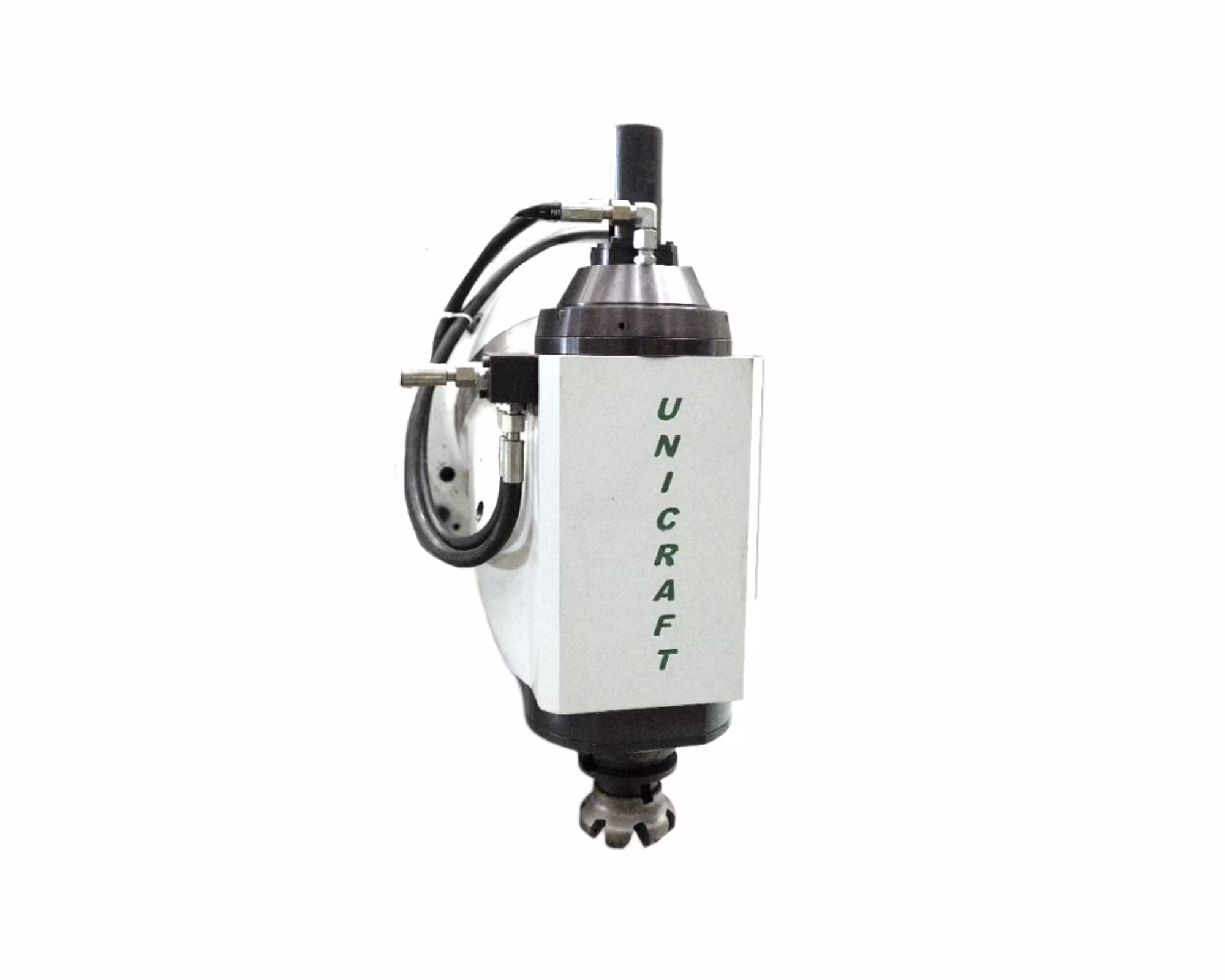

Various Head options available

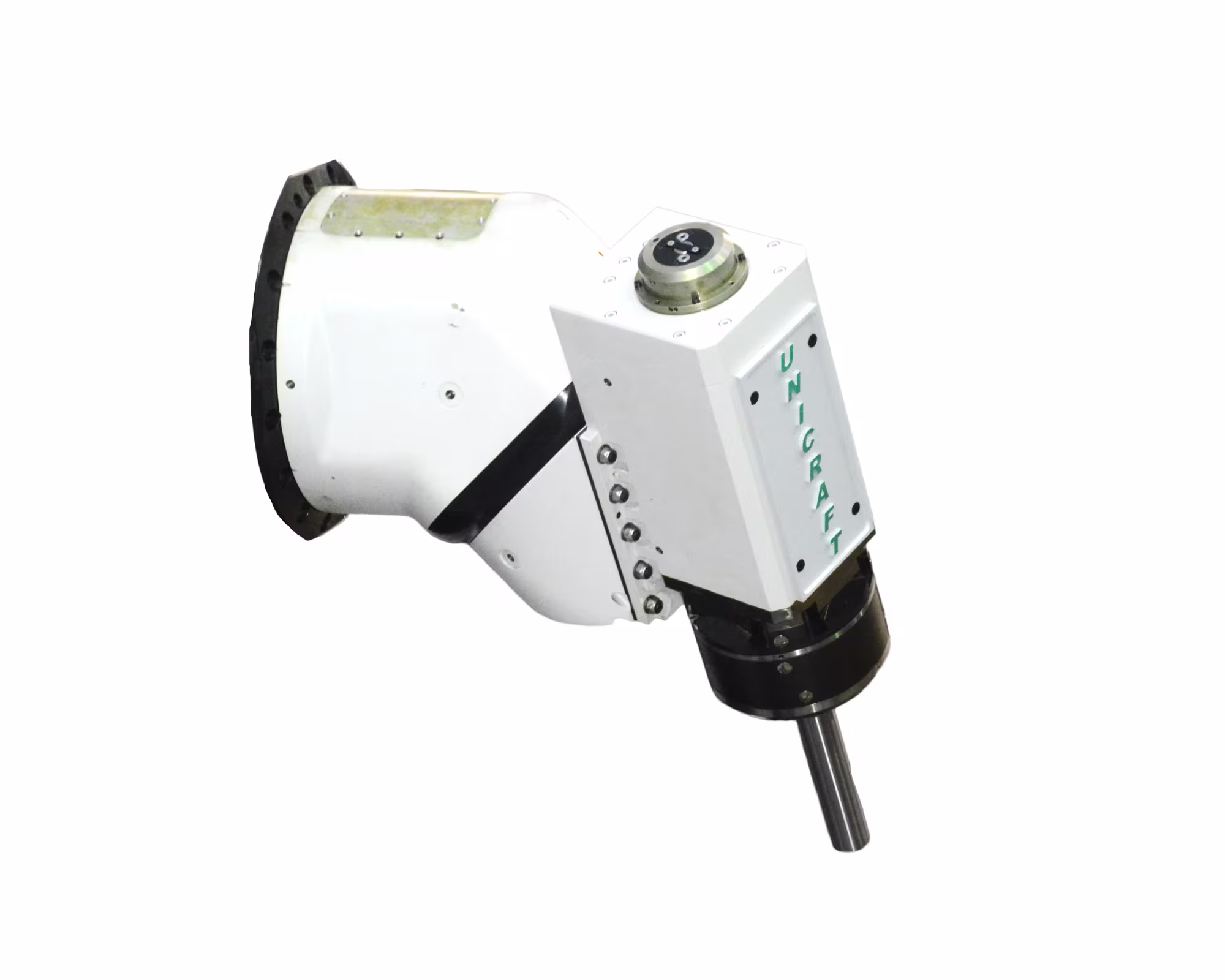

Auto Indexing Head 1° /2.5°/ 5° / 15° and Continuous
ATC Tool Magazine 20 / 40 / 60
Continuous Rotary Table and Floor Plates of choice
Product Specifications
| TRAVEL | ||
| X – Longitudinal Column | 5000...30,000 | mm |
| Y – Vertical Head | 3000 | mm |
| Z – Cross RAM | 1000 | mm |
| RAM | ||
| RAM Cross Section | 450 x 450 | mm |
| Spindle Power | 30 STD | kW |
| Spindle Speed | As per Head | - |
| Spindle Taper | BT50/HSK100 | - |
| ROTARY TABLE (CONTINUOUS) | ||
| Table Diameter | 2000 | mm |
| Power | 50 STD | kW |
| Speed Range | 125 | RPM |
| CONTROL | ||
| Control | Siemens / Fanuc / Fagor | - |
Custom Requirements?
If your requirements differ from the listed specifications, feel free to reach out. We're happy to assess the feasibility of a customized solution.
Get expert consultation for your specific manufacturing needs
