SPM FOR METAL CUTTING
HORIZONTAL LATHE WITH MILLING

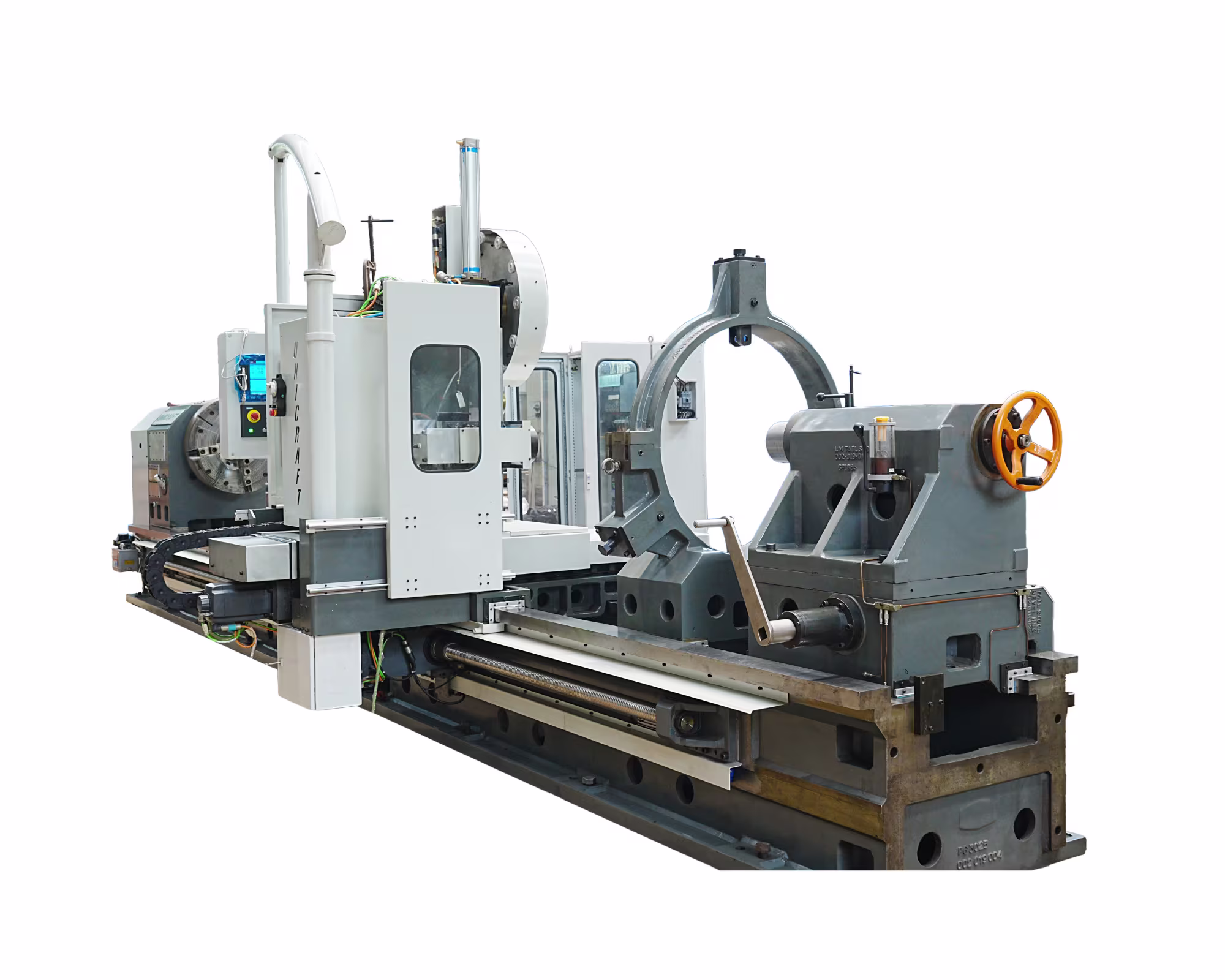

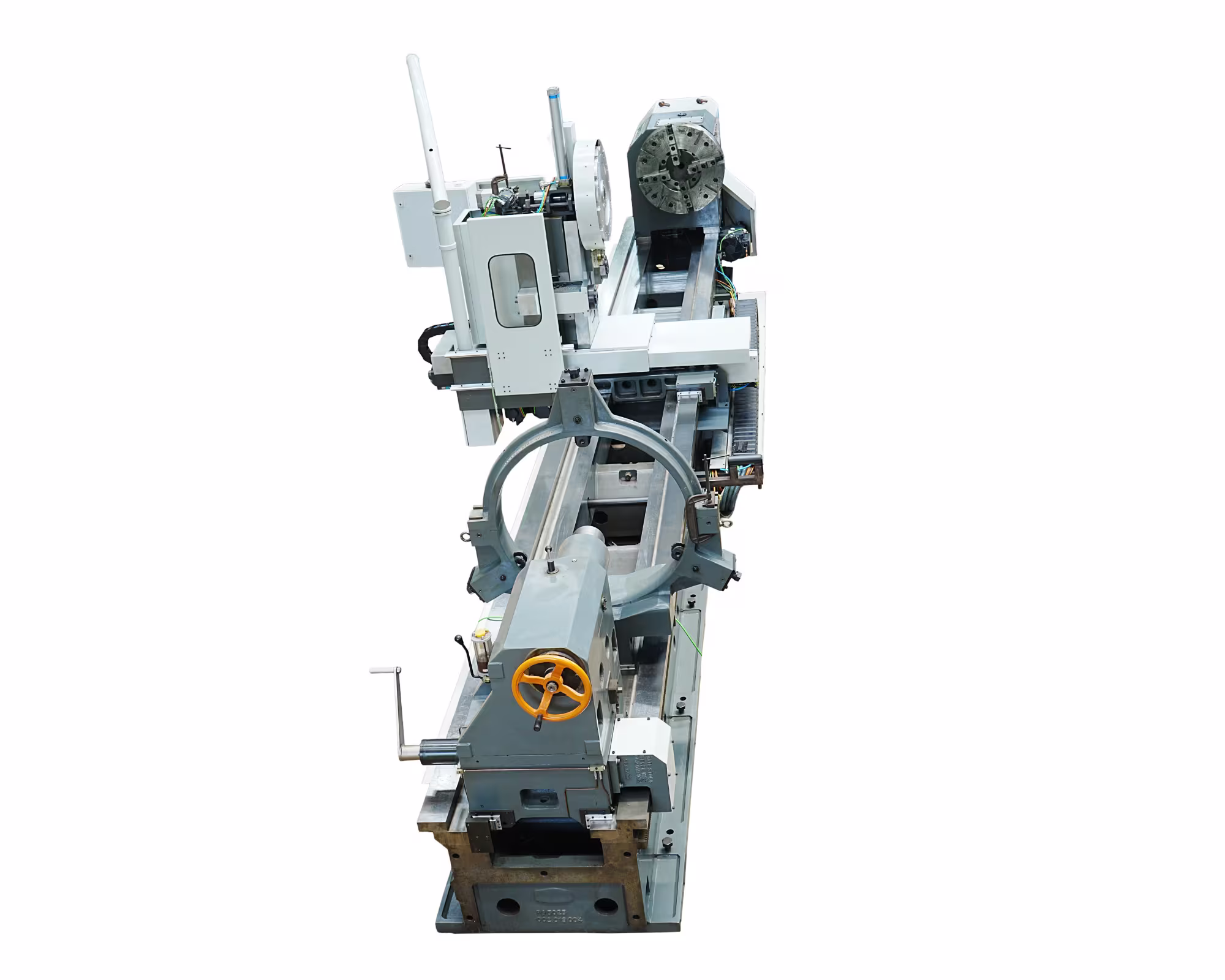

Horizontal Lathe with Integrated Milling Capabilities
LONG COMPONENTS WITH HIGH ACCURACY
SPM with Continuous C axis built for turning and milling of large components.
Key Features
ATC (Automatic Tool Change)
Continuous C Axis
Product Specifications
| TRAVEL | ||
| X - Cross slide movement | 550 | mm |
| Y - Vertical | 250 | mm |
| Z - Longitudinal movement | 6500 | mm |
| MILLING HEAD | ||
| Spindle Power | 5 | kW |
| Spindle Speed | 3000 | RPM |
| C AXIS CONTINUOUS | ||
| Minimum Index Angle | 0.001° | deg |
| CAPACITY | ||
| Chuck Diameter | 800 | mm |
| Max Turning Diameter | 900 | mm |
| Power | 22 | kW |
| Speed Range | 100 | RPM |
| CONTROL | ||
| Control | Siemens / Fanuc / Fagor | - |
Custom Requirements?
If your requirements differ from the listed specifications, feel free to reach out. We're happy to assess the feasibility of a customized solution.
Get expert consultation for your specific manufacturing needs
