SPM FOR COMPOSITES
FILAMENT WINDING CUM MOULD TURNING MACHINE

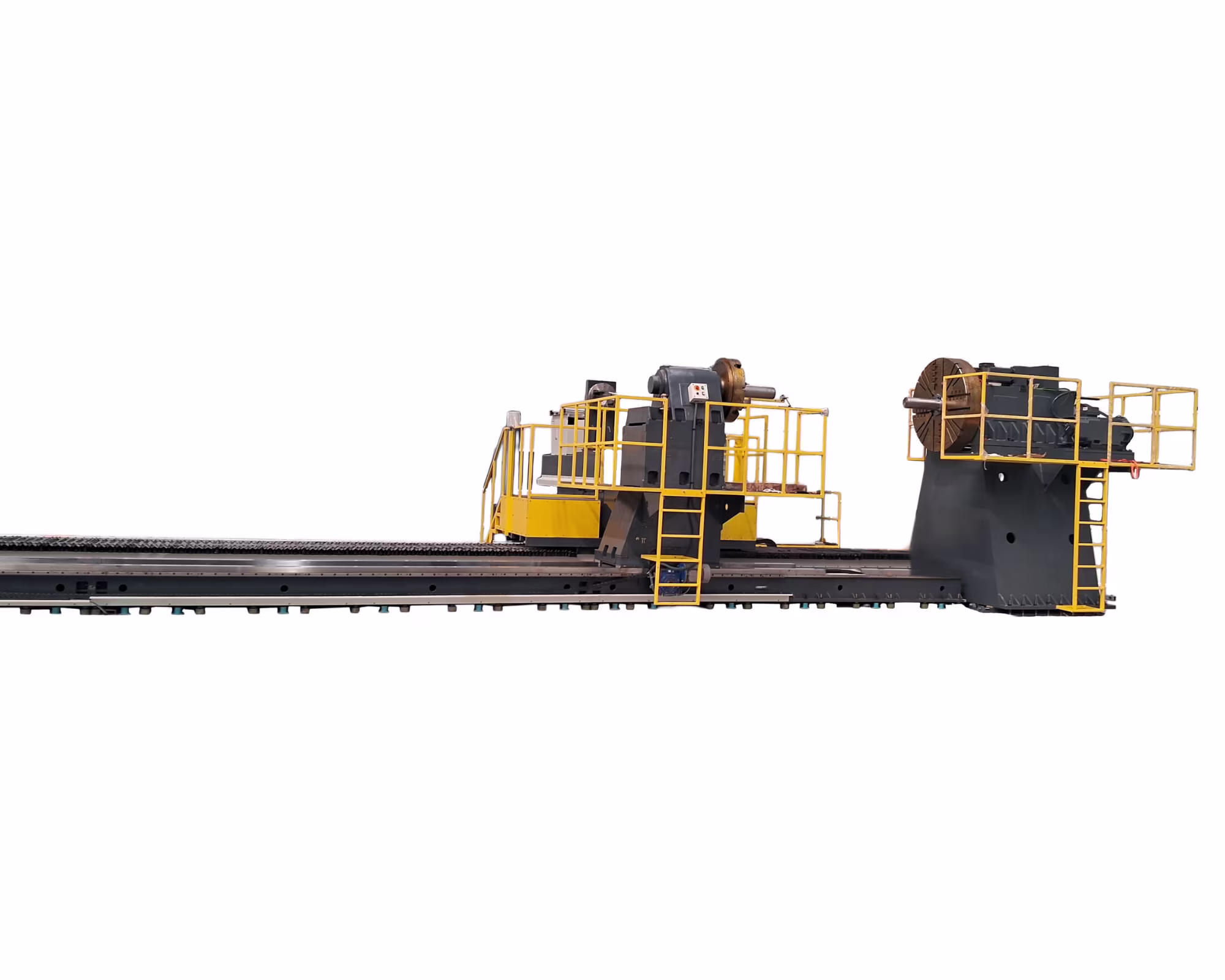

Filament Winding and Mould Turning Machine
4 AXIS FILAMENT WINDING
SPM built for winding resin-impregnated fiber material around a 'mandrel' to create composite products and tanks. With mould turning capability.
Key Features
Automatic Filament Dispenser with Heater
Servo Tensioning Creel (x24)
Product Specifications
| TRAVEL | ||
| X - Axis | 2200 | mm |
| Z - Axis | 14,000 | mm |
| Number of Axes | 4 | - |
| C AXIS CONTINUOUS | ||
| Minimum Index Angle | 0.001° | deg |
| Maximum Fiber Tension | 10 | kg |
| A AXIS | ||
| Range | 360° | deg |
| CAPACITY | ||
| Maximum Mandrel Diameter | 3500 | mm |
| Maximum Load | 40,000 | kg |
| Power | 40 | kW |
| Max Speed | 20 | RPM |
| CONTROL | ||
| Control | Siemens / Fanuc / Fagor | - |
Custom Requirements?
If your requirements differ from the listed specifications, feel free to reach out. We're happy to assess the feasibility of a customized solution.
